Model No.

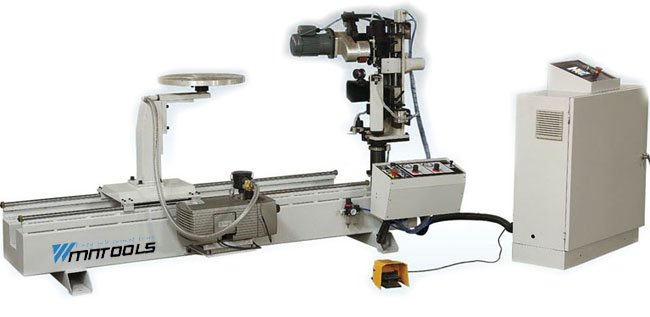

MTCET-2440

Panel thickness

16-40mm

PVC tape width

4mm bigger than panel thickness

Tape thickness

1.2~2.0mm

Max. length of panel

2400mm

Min. diagonal length

800mm

Min. inner radius

R250mm

Min. outer radius

R50mm

Total power

1kw

Workpiece turning angle

≥90°

Trimming blade

D59xZ6

Trimming blade speed

10000~120000rpm

Overall size

L2160xW1150xH1500mm

N.W

1000Kgs
